Model No.: BH-7290 | Place of Origin: China |
Product features:
1. Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.
2. The upper and lower mold forming methods.
3. Servo feeding, stepless length adjustment, high speed, accuracy and stability.
4. The second stage heating of the electric heating furnace.
5. The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. The division one control and the other adopts the human-machine interface digital input, which has high fine-tuning accuracy, uniform temperature and stability (not affected by external voltage, temperature fluctuation does not exceed 1 degree), Low energy consumption (about 15% energy saving), long service life of the furnace plate and other advantages.
6. The molding and cutting unit opens the mold, and the mold clamping is controlled by a servo motor, and the products are automatically counted and output.

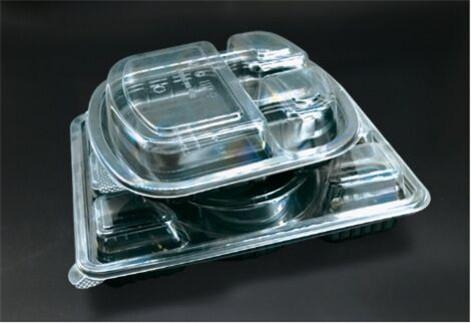

7. The products are stacked in a variety of ways, because the products can be customized.
8. With product data and parameter file memory function.
9. The width of the feeding chain track can be adjusted automatically or separately.
10. The electric furnace is automatically removed from the device.
11.The mechanical feeding roll device reduces the labor intensity of workers.
Second, the technical parameters:
Material thickness |
Forming length |
Forming width |
Forming height |
Cutting pressure |
Work efficiency |
0.2-2.0mm |
900mm |
480-720mm |
<150mm |
100T |
6-20cycle/min |
Vacuum pump power |
Whole machine power(maximum) |
Total heating power |
Dimensions(L*W*H) |
Total weight |
Applicable materials |
3.7kw |
88kw |
60kw |
12800*2000*2800mm |
11T |
PET、PP、PVC、APET、PETG、PS、PLA |
